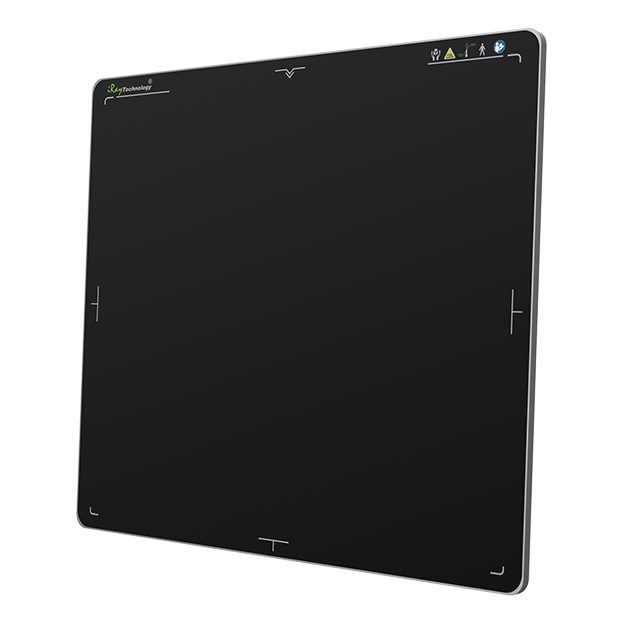

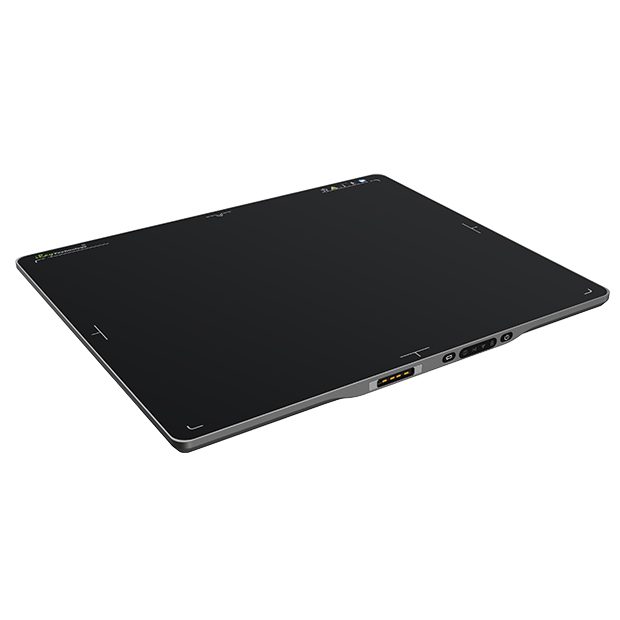

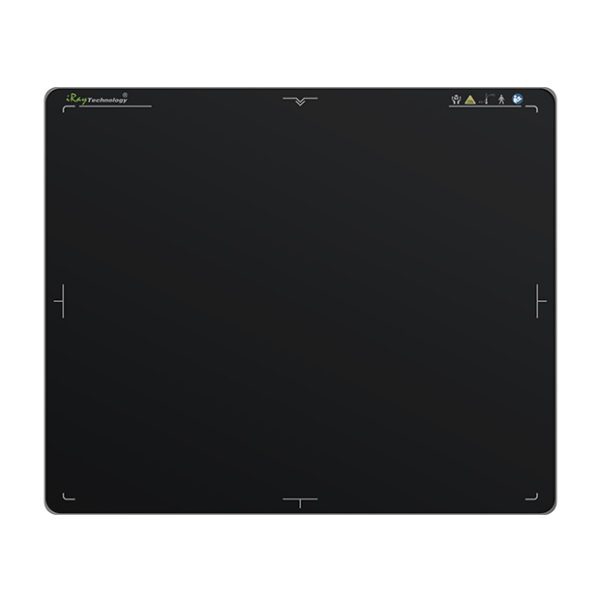

Mars 1417X

17×17 Wireless a-Si Flat Panel Detector

Mars 1717X is a best in class 17×17-inch wireless, cassette-sized flat panel detector for radiographic imaging. It features a 100 μm pixel pitch with direct deposition CsI. Cutting-edge technologies include a novel light-weight housing design with IP56 ingress protection, in-tray battery charging, and reliable，low power intelligent automatic exposure detection (iAED). With its exceptional image quality the Mars 1717X is an excellent choice for high-end DR systems.

Categoría: Wireless Radiography Detectors

Descripción
Valoraciones (0)

Features

- Wireless cassette detector per ISO 4090, fits in bucky
- Full AED control, exposure at any time
- Best-in-class 100 μm pixel pitch with 16-bit ADC for more image details
- Large capacity battery design, with 8+ hours battery life
- Lightweight design with IP56 ingress protection
- Supports a fast workflow for a better user experience
- Direct deposition Csl, with excellent DQE at all frequencies

Technical Parameters

Mars 1417X
Detector Technology	Amorphous Silicon	Dimension (mm)	384 x 460 x 15
Scintillator	CsI	Weight (kg)	3.0
Imaging Area (inch)	14 × 17	Static Loading (kg)	300
Pixel Pitch (μm)	100	Ingress Protection	IP56
AD Conversion (bit)	16	Operating Temperature (℃)	10~35
Battery Autonomy (h)	8.5	Storage & Transport Temperature with Package(℃)	-20~55
WIFI	2.4G and 5G IEEE802.11 a/b/g/n/ac	Operating Humidity （% RH）	5~90 (Non-Condensing)
Trigger Mode	AED (optional) / Software	Storage & Transport Humidity with Package （% RH）	5~95 (Non-Condensing)
Full Image Time (s)	3

* This document cannot be considered to be a contractual specification.

The information given herein may be modified without notice.
